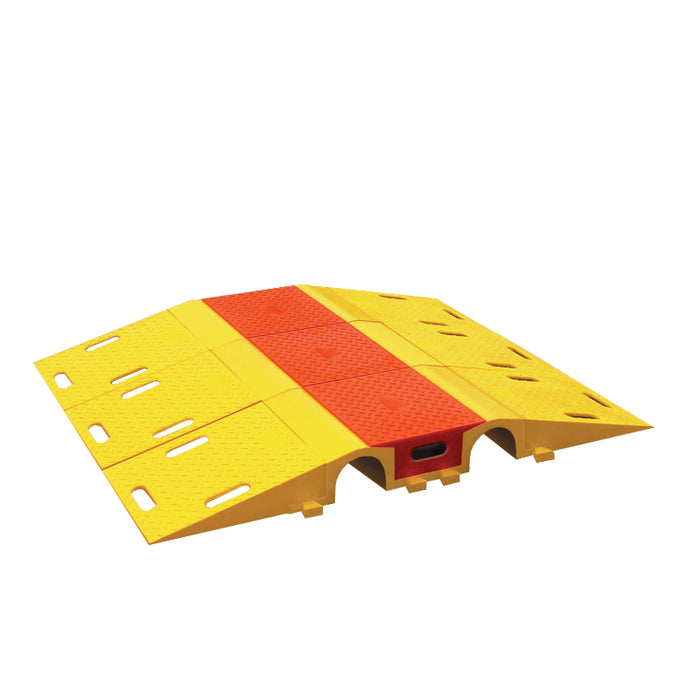

Diamondback® 1 Channel Tunnel System - Yellow

Features

• Polyurethane construction is abrasion, impact and weather resistant with high load-bearing capacity
• Diamond-plate tread surface increases traction
• Yellow caution color for high visibility
• Modular interlocking design is lightweight, easy to transport, setup, disassemble, and store
• Built-in hand holds allow for handling with ease and double as attachment points for mounting brackets
• WARNING: Vehicles crossing bridge system must have clearance of greater than bridge height
• WARNING: Hose Bridges are for rubber tired vehicles only (not for equipment with metal tracks)

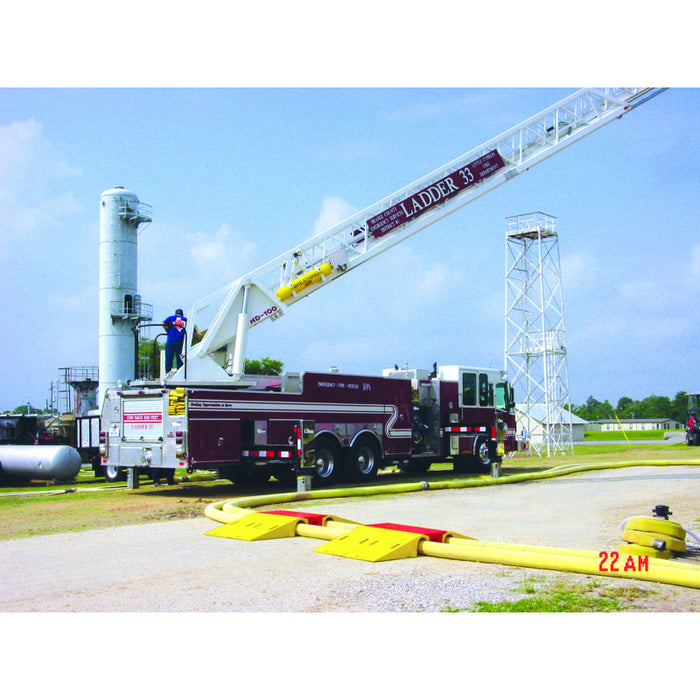

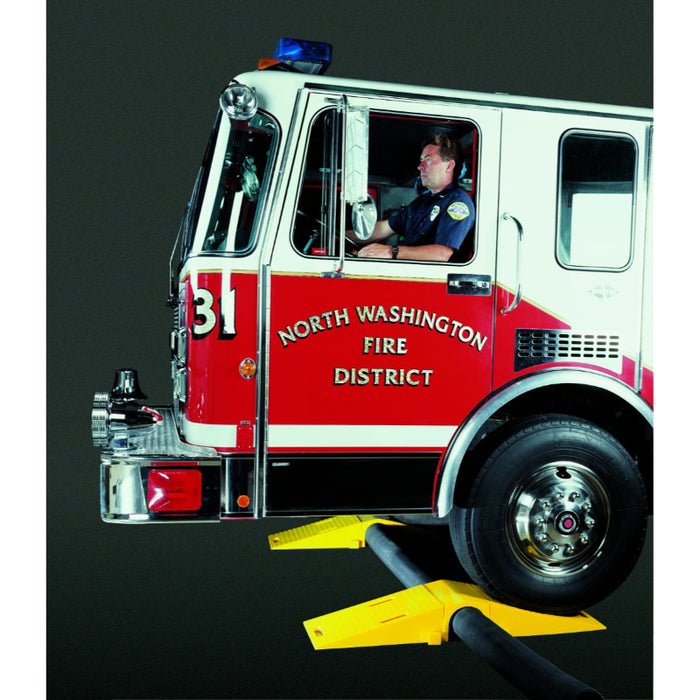

Diamondback® single tunnel systems provide protection for valuable cable and hose lines while ensuring a safe method of passage for vehicles. High-density, all-weather urethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs. The single tunnel systems feature a high load-bearing capacity, modular, interlocking design, and diamond-plate tread surface for increased traction with hoses and cables up to 6.5" in diameter.

Technical Specifications

• Quantity Included - 1
• Pallet Quantity - 10
• Load Capacity Per Axle - 17100 lbs
• Load Capacity Per Tire - 8550 lbs
• Length - 63 Inches
• Width - 17.5 Inches
• Height - 8.13 Inches
• Max Cable Outside Diameter - 6.5 Inches
• Number of Channels - 1-channel
• Bridge Length - 60 Inches
• Bridge Width - 16 Inches
• Bridge Height - 8.13 Inches
• Tunnel Diameter - 7 Inches
• Tunnel Top Length - 9.13 Inches
• Tunnel Base Length - 18.25 Inches
• Ramp Top Length - 25.5 Inches
• Ramp Base Length - 20.88 Inches
• System Weight - 92 Inches
