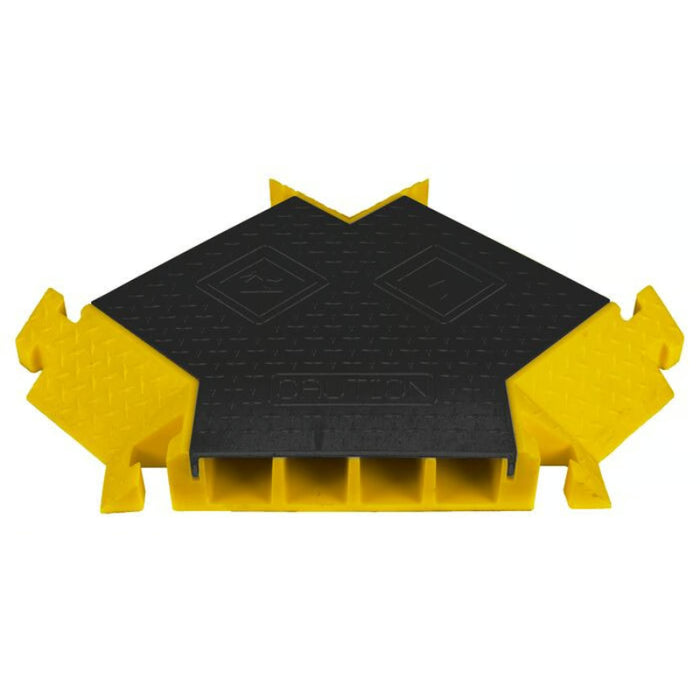

Bumble Bee® Y Section with T-Connector for (BB4-300GM-B/Y) 4 Channel Cable Protector - Black / Yellow

Features

• Creates 45 degree "Y" connector
• Protects cables and hoses up to 3.0" outside dia.
• Designed for manufacturing facilities
• Patented t-connectors to extend to any length
• Thick lid and base allow for high volume of traffic
• Modular interlocking design


Use the 4-Channel Bumble Bee® "Y" Split Section model BB4Y-300GM-B/Y with Bumble Bee 4-Channel Cable Protector model BB4-300GM-B/Y. The Y split creates a 45 degree turn while protecting valuable electrical cables and hose lines up to 3” tall by 3” wide from damage. Ideal for use in automotive, appliances and other high-volume, limited access, automated manufacturing facilities, the module, interlocking design provides a safe crossing in high volume traffic areas.

Technical Specifications

• Color - Yellow Lid / Black Base
• Load Capacity Per Axle - 20200 lbs
• Load Capacity Per Tire - 10100 lbs
• Length - 24 Inches
• Width - 24 Inches
• Height - 3.875 Inches
• Connector Type - T-Connector
• Max Cable Outside Diameter - 3 Inches
• Quantity Included - 1
• Channel Width - 3 Inches
• UPC - 812542022057
