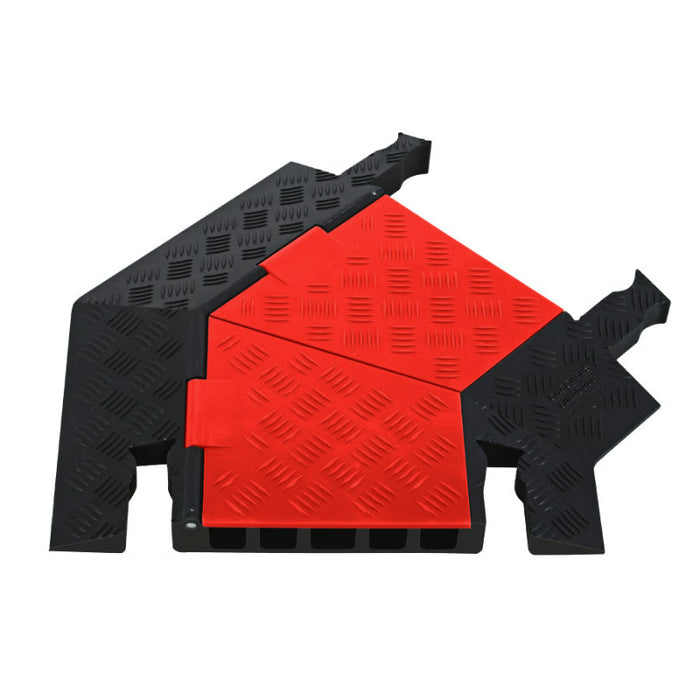

Guard Dog® 45 Degree Right Turn for (GD5X125) 5-Channel Cable Protector - Orange / Black

Features

• Creates a 45 Degree Right Turn
• Protects Cables And Hoses Up To 1.325" Outside Dia.
• Dog Bone® connectors
• Reinforced Hinged Lid For Easy Cable Placement
• All-Weather Polyurethane Construction
• Patented 5-Bar Tread Surface For Maximum Traction
• Join left and right turns to create a jog


Your cable protection system isn't always going to run straight. On occasion, you're going to need to weave it around obstacles. And that's where the Guard Dog 5-Channel General Purpose Right Turn Cable Protector comes in. Designed for cables and hoses with a diameter of up to 1.325", it features Dog Bone connectors, a reinforced hinged lid for easy cable placement and a patented 5-Bar tread surface for maximum traction.

In short, it offers everything a standard Guard Dog protector does. Its all-weather polyurethane construction makes it perfectly-suited for just about any use case, from amusement parks and sporting events to heavy-duty industrial sites. You can also join this cable protector with the Left Turn Protector to create a jog.

Technical Specifications

• Color - Orange Lid / Black Base
• Length - 23.25 Inches
• Width - 21.88 Inches
• Height - 2 Inches
• Load Capacity Per Axle - 21000 Lbs
• Load Capacity Per Tire - 10500 Lbs
• Number of Channels - 5-channels
• Max Cable Outside Diameter - 1.325 Inches
• Channel Width - 1.339 Inches
• Quantity Included - 1
