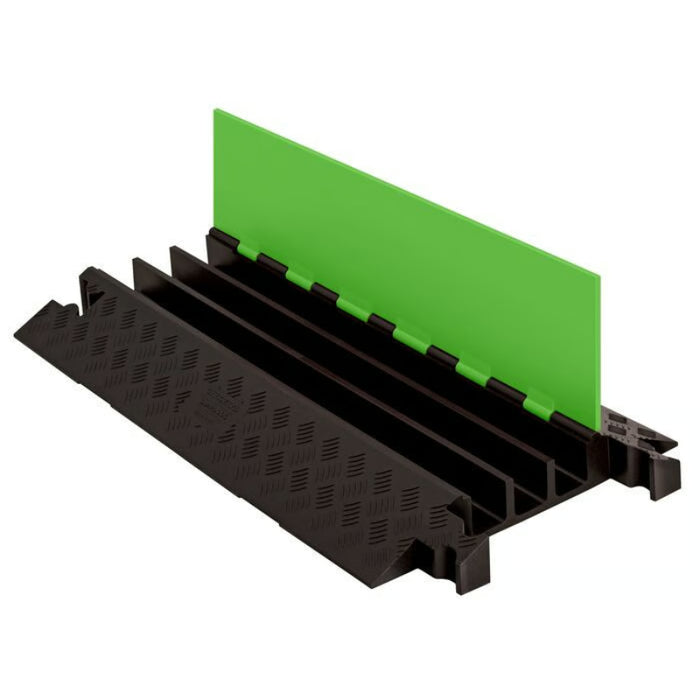

Guard Dog® Cable Protector Ramp - 3 Channels - Lime Green / Black

Features

• Protects cables and hoses up to 2.25" outside dia.
• SafeRay™ Technology in Hi-Viz green provides the best day and night visibility
• Dog-bone® connectors to extend to any desired length
• Reinforced hinged lid for easy cable placement
• All-weather polyurethane construction
• Patented 5-bar tread surface for maximum traction
• Modular interlocking design for easy setup
• Ideal for use in: amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications


Whether you operate an amusement park, an industrial site, a construction firm or an entertainment venue, at some point you'll need a means of protecting electrical cables and hose lines. Built from all-weather high visibility green polyurethane, Guard Dog 3-Channel Cable Protectors model GD3X225-FLG/B can be used with cables up to 2.25" in outside diameter. Thanks to a patented 5-bar tread surface, you can ensure maximum traction for both vehicles and pedestrians, while a reinforced hinge lid ensures easy cable placement.

The Hi-Viz green coloring was created specifically for situations requiring high visibility, using SafeRay™ Technology that provides the best day and night visibility.

Additionally, the modular, interlocking design ensures easy setup, while Dog Bone connectors allow you to extend your protector to whatever length you require.

Technical Specifications

• Color - Lime Green Lid / Black Base
• Load Capacity Per Axle - 28420 Lbs
• Length - 38.88 Inches
• Height - 3.13 Inches
• Width - 19.75 Inches
• Max Cable Outside Diameter - 2.25 Inches
• Number of Channels - 3 Channels
• Connector Type - Dog Bone Connector
• Channel Width - 2.25 Inches
• Pallet Quantity - 40
• Quantity Included - 1
