Diamondback® Hose Bridge Single Tunnel Package for 3.5" Lines

Features

• Polyurethane Construction is Abrasion, Impact and Weather-Resistant with High Load-Bearing Capacity
• Diamond-Plate Tread Surface Increases Traction
• Yellow Caution Color for High Visibility
• Modular Interlocking Design is Lightweight, Easy to transport, Setup, Disassemble, and Store
• Built-In Hand Holds Allow for Handling with Ease and Double as Attachment Points for Mounting Brackets
• WARNING: Vehicles Crossing Bridge System Must Have Clearance of Greater Than Bridge Height
• WARNING: Hose Bridges are for Rubber-Tired Vehicles Only (Not for Equipment with Metal Tracks)

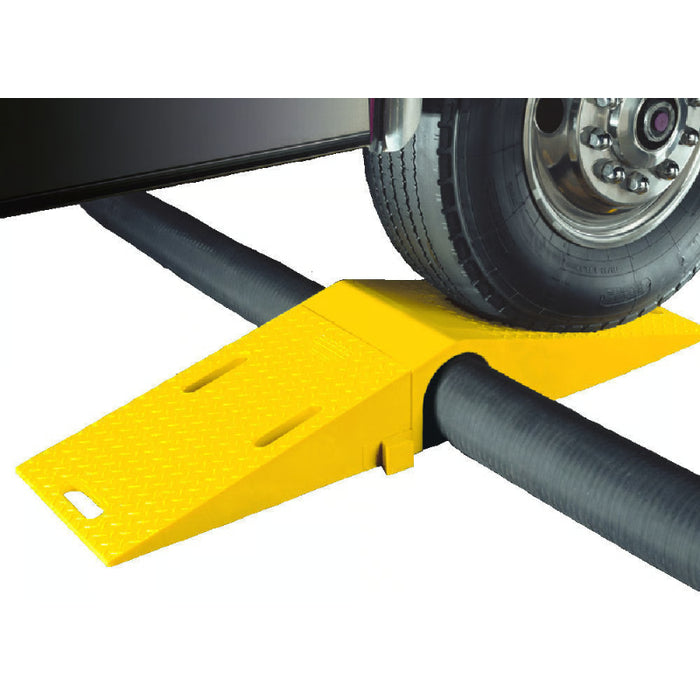

Diamondback® single tunnel systems provide protection for valuable cable and hose lines while ensuring a safe method of passage for vehicles. High-density, all-weather urethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs. The single tunnel systems feature a high load-bearing capacity, modular, interlocking design, and diamond-plate tread surface for increased traction with hoses and cables up to 3.5" in diameter.

Technical Specifications

• Quantity Included - 1
• Pallet Quantity - 40
• Load Capacity Per Axle - 19800 lbs
• Load Capacity Per Tire - 9900 lbs
• Length - 27 Inches
• Width - 17.63 Inches
• Height - 4.5 Inches
• Max Cable Outside Diameter - 3.5 Inches
• Number of Channels - 1-channel
• Bridge Length - 38.25 Inches
• Bridge Width - 16 Inches
• Bridge Height - 4.63 Inches
• Tunnel Diameter - 3.5 Inches
• Tunnel Top Length - 6.5 Inches
• Tunnel Base Length - 14.38 Inches
• Ramp Top Length - 16 inches
• Ramp Base Length - 12 Inches
• System Weight - 40 Inches
