Features

• Protects Cables and Hoses Up to 1.325" Outside Dia.
• Dog-Bone® Connectors to Extend to Any Desired Length
• Fast Install with Drop-Over Design
• All-Weather Polyurethane Construction
• Patented 5-bar Tread Surface for Maximum Traction
• Connects to Standard Guard Dog 5-Channel

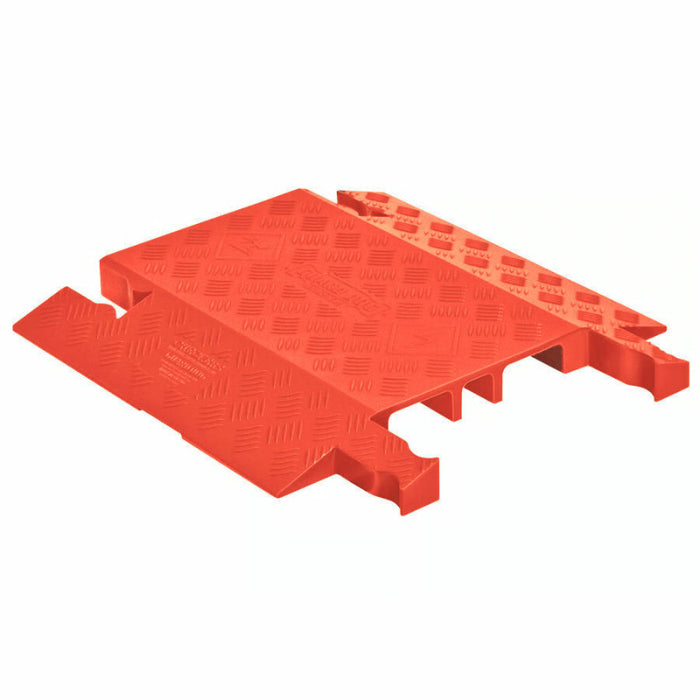

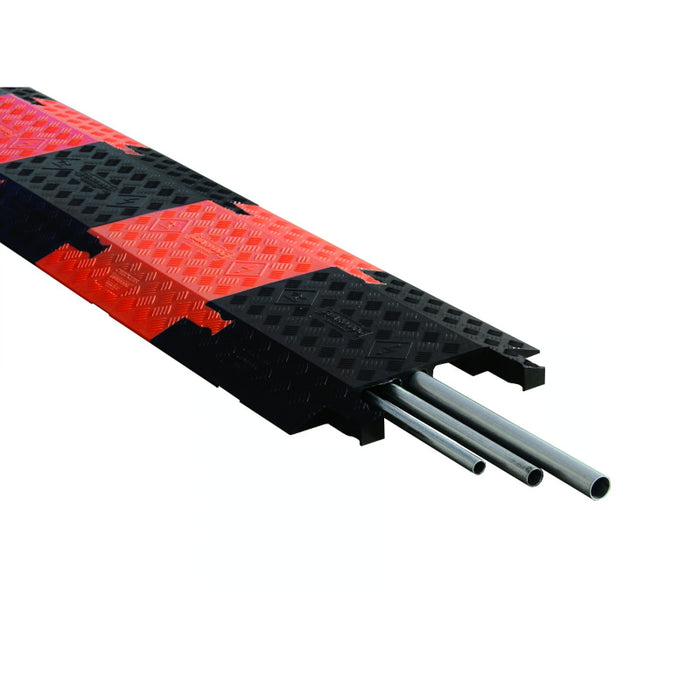

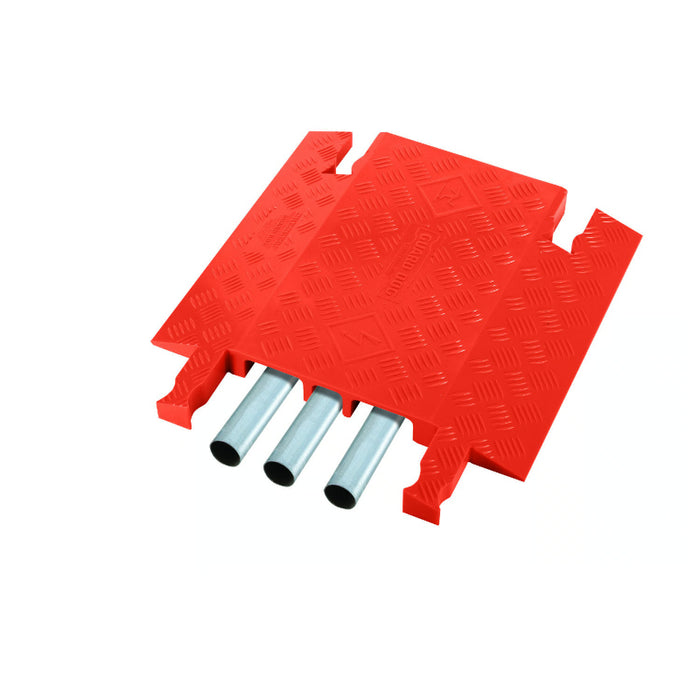

Guard Dog® 3-channel drop-overs protect pipes, conduit, cable and hose lines that are permanently installed or mounted to the ground or floor. Drop-overs protect from above but do not prevent abrasion from below and should be used on a flat surface only. Ideal for providing a safe crossing for vehicles and pedestrian traffic in public, commercial and industrial applications. This 3-channel drop-over System features two extra wide channels to accommodate various quantities and sizes of lines up to 1" tall and 1.65" to 3.2" wide. These lightweight, 18 in. long drop-overs are easy to store in service/utility trucks and use when needed.

Technical Specifications

• Color - Orange
• Load Capacity Per Axle - 21000 Lbs
• Length - 18 Inches
• Height - 1.87 Inches
• Width - 19.75 Inches
• Max Cable Outside Diameter - 1.325 Inches
• Number of Channels - 3 Channels
• Connector Type - Dog Bone Connector
• Channel Width - 3.2 Inches
• Quantity Included - 1
• UPC - 812958004456
