Features

• Protects Cables And Hoses Up To 1.325" Outside Dia.
• Dog Bone Connectors To Extend To Any Desired Length
• Reinforced Hinged Lid For Easy Cable Placement
• ADA Accessibility Ramps Built In - No Connectors Needed
• All-Weather Polyurethane Construction
• Patented 5-Bar Tread Surface For Maximum Traction
• Interconnects with standard 5 Channel Dog Bone® Connector Models
• Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications

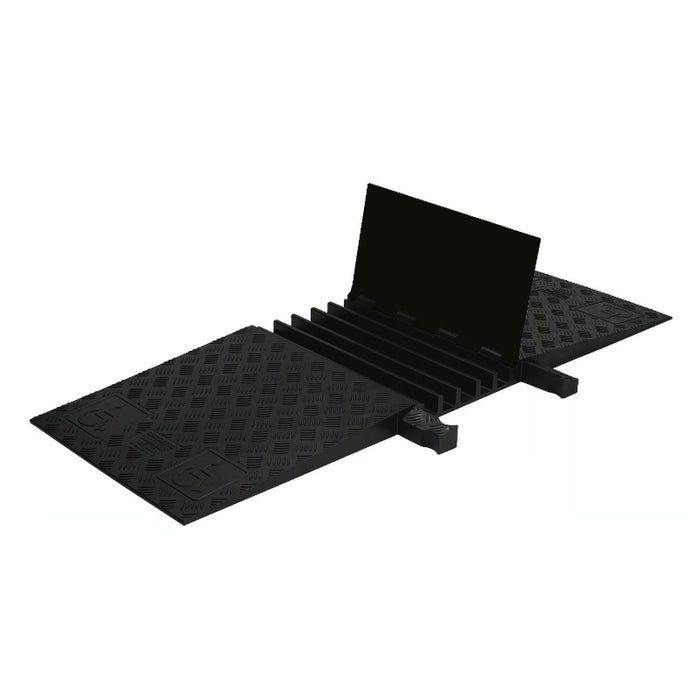

Yellow Jacket® 5-channel ADA cable protectors have built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors. Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Yellow Jacket® cable protector. This modular interlocking design is available in lightweight 18" sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

Technical Specifications

• Color - Black Lid / Black Base
• Load Quantity Per Tire - 10500 Lbs
• Load Capacity Per Axle - 21000 Lbs
• Length - 18 Inches
• Height - 1.88 Inches
• Width - 50 Inches
• Max Cable Outside Diameter - 1.325 Inches
• Number of Channels - 5 Channels
• Connector Type - Dog Bone Connector
• Channel Width - 1.339 Inches
• UPC - 812542021487
• Quantity Included - 1
